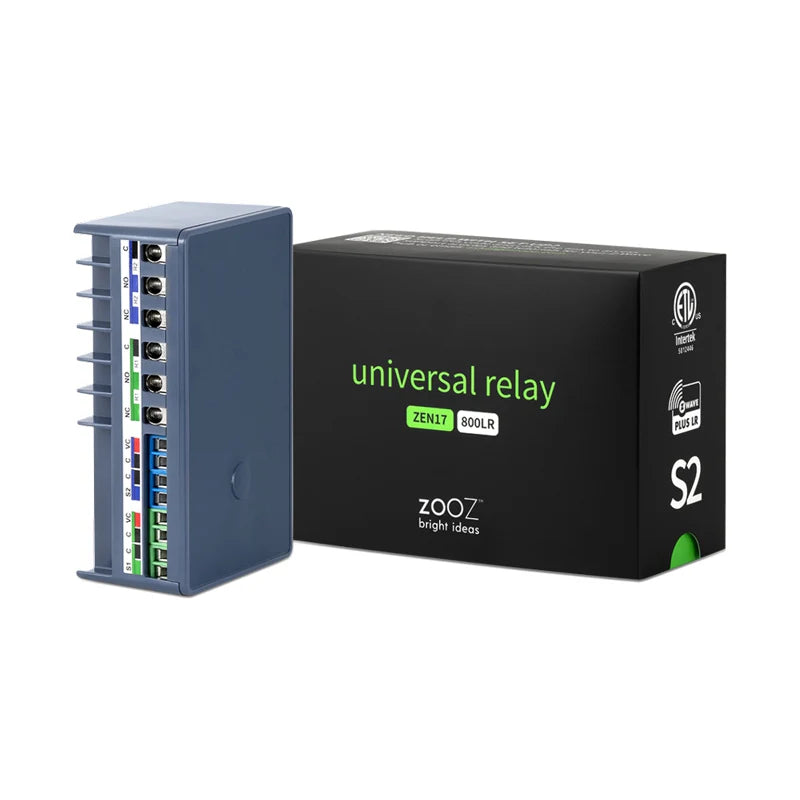

Zooz 800 Series Z-Wave Universal Relay ZEN17 800LR with 2 NO & NC Relays (20A, 10A)

Name: Zooz 800 Series Z-Wave Universal Relay ZEN17 800LR with 2 NO & NC Relays (20A, 10A)
Brand: Zooz
Price: 45.00 GBP
Availability: InStock

£45.00 GBP

Sale Sold out

Taxes included.

Quantity

PRODUCT HIGHLIGHTS

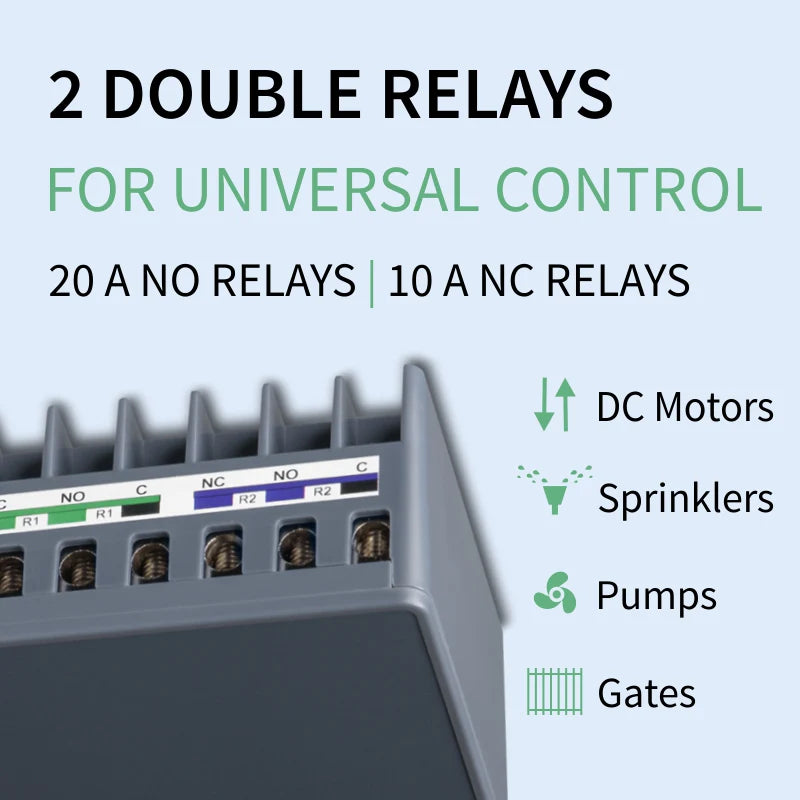

2 NO or NC relays to turn almost any load into a Z-Wave device (use either the normally closed or normally open relay for R1 and R2 at a time)

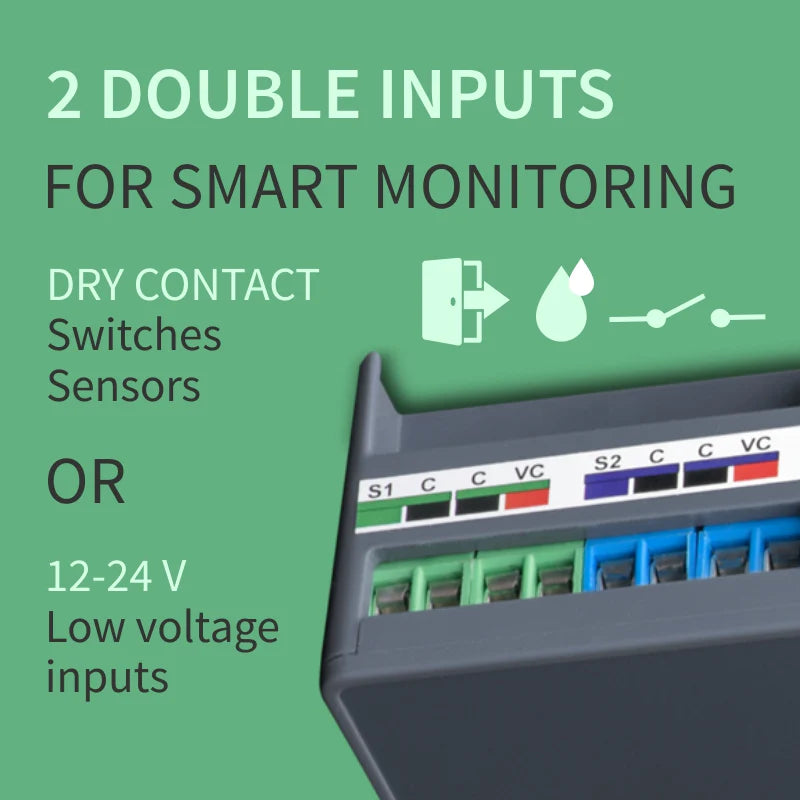

2 Dry Contact or 12-24 V inputs to monitor HVAC systems, magnetic door sensors, or analog leak alarms (use either dry contact or 12-24 V input for R1 and R2 at a time, never apply voltage to the Sw terminals)
Automate up / down DC motors in screens, awnings, motorized blinds
Control sprinkler systems, commercial gates, garage doors (will NOT work with MyQ or other smart openers), pool pumps, whole-house fans, landscape lighting, and more
NEW 800 chip: more range, faster signal, SmartStart inclusion + S2 security
SmartStart and S2 authenticated security for a truly secure smart home
Powered by USB C or 12-24 V (AC/DC): power supply NOT included (get it here)
Use optional wall switches for manual control of connected devices
Wall-mount ready

SPECIFICATIONS

Z-Wave Frequency: US / CA / MX
Power: 12 - 24 V / USB C
Maximum Load: NO relays: 20 A, NC Relays: 10 A
Z-Wave Range: Up to 300 feet line of sight
Installation and Use: Indoor Only
Operating Temperature: 32-104° F (0-40° C)
Dimensions: 4" x 2.5" x 1.5"

WORKS WITH

ADT Pulse (no advanced settings)
eedomus
Ezlo Plus
Fibaro Home Center 2
Fibaro Home Center Lite
Home Assistant (Z-Wave JS)
HomeSeer (with Z-Wave Plus plug-in)
Homey (Zooz App for Homey, NOTE: creating child devices for inputs is NOT currently supported.)
Hubitat (2.2.6 release or higher)
Indigo
ISY
Jeedom
SmartThings (works best with the custom driver, installation instructions here)

INSTALLATION

Follow the appropriate diagram to wire the Universal Relay according to your application. If you don't see a diagram describing your set-up, please contact us to request help with the installation. Remember to always turn power off at the breaker before handling the wires. Never apply any voltage to the Sw input terminals!

Once you've completed the wiring, power the Universal Relay up with a USB C and a standard power adapter (sold separately) or a direct connection to 12 / 24 V power source.

Now add the Universal Relay to your hub: initiate inclusion (pairing mode) and click the Z-Wave button on the device 3 times quickly. The LED indicator will blink to indicate communication and stay on for 2 seconds to confirm inclusion.

You’ll most likely see 3 new on/off devices in your app:

2 channels for on/off control of each relay
1 master node to control all relays at the same time and to access and adjust advanced settings in (if your hub supports parameter input)
