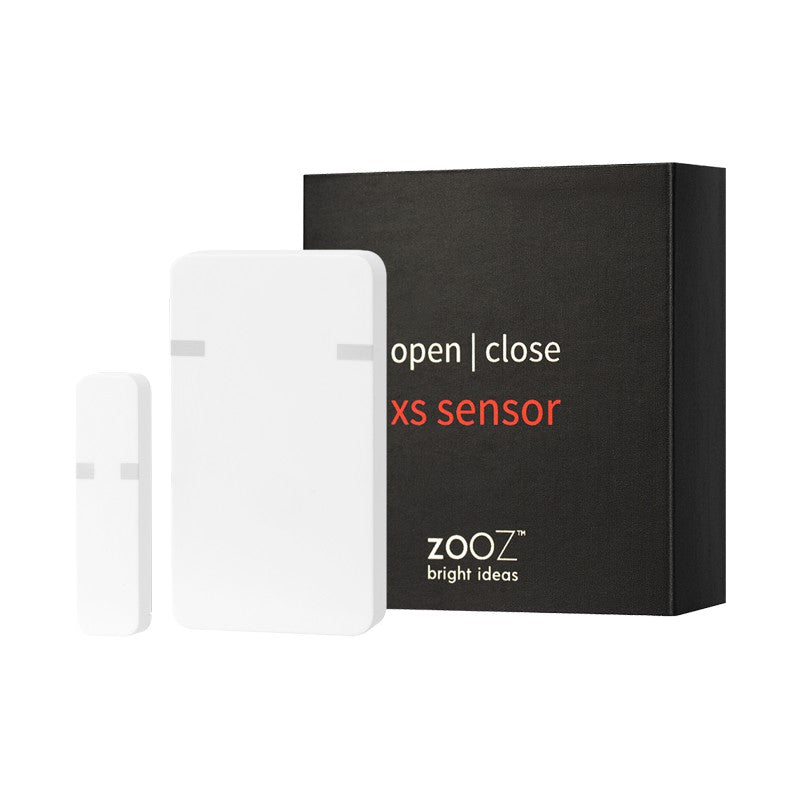

Zooz 700 Series Z-Wave Plus XS Open | Close Sensor ZSE41

Simple Security

PRODUCT HIGHLIGHTS

• Door/window monitoring: fast and reliable reports are sent to your Z-Wave hub whenever a door or window is open or closed

• Extra small: slim and discreet enough to easily blend in with most frames and surfaces

• Protective surface: coated with rubber oil to prevent corrosion and water leak damage

• NEW 700 chip: more range, faster signal, SmartStart inclusion + S2 security
• Outdoor installation: use the dedicated waterproof cover case for the ZSE41 (sold separately) to mount it anywhere outside
• Power it with a single CR2032 battery
• SmartStart for easier and safer pairing
• Advanced settings to customize your sensor
•  CHECK HUB COMPATIBILITY BEFORE BUYING (DOESN'T WORK WITH ALARM PANELS)
• 5-year extended warranty once registered and lifetime tech support
• Check out ZSE41 Frequently Asked Questions

NOTE: Z-Wave gateway controller required - sold separately. You need a security-enabled controller to take full advantage of the product.

How It Works

The Zooz XS Sensor allows you to protect your home discreetly without breaking the bank. When connected to your Z-Wave hub, it will tell you exactly if and when a door or window has been opened.

Attach it to a kitchen cabinet to make sure it's not accessed when it's not supposed to be. Put it on a drawer to safeguard your valuables. Receive instant text/email notifications on your smart phone or laptop so that you’re always kept in the loop, no matter where you are.

Use the sensor to speak to other Z-Wave security devices, like triggering a Z-Wave alarm siren when the backdoor is opened unexpectedly. With features like low-battery alerts and 700 series Z-Wave chip for faster and safer connectivity, the XS Open | Close Sensor is as dependable as it gets.

Installation

To add the XS Open | Close Sensor to your Z-Wave network:

1. Use a small flat screwdriver to gently open the sensor’s cover and access the battery. Pull the tab from under the battery to activate the sensor. Don’t close the cover just yet. The LED indicator will start blinking for around 10 seconds once the
sensor is powered.
2. Bring the sensor to the location where you plan to mount it at.
3. Put your Z-Wave gateway controller into inclusion/pairing mode.
4. Scan the QR code or enter the PIN code located on the back of the battery cover if your hub supports SmartStart S2 inclusion.
5. Click the Z-Wave button on the sensor 3 TIMES QUICKLY. The LED indicator will flash quickly.
6. A new open/close (door/window) sensor will appear on your controller’s device list.

After successfully including the sensor into your Z-Wave network, use the supplied adhesive tape to mount it so that the sensor is fixed to the moving part and the magnet is fixed to the window / door frame.

If installing the sensor outdoors, please make sure to insert the sensor to the waterproof case (sold separately) and mount the case using the supplied mounting screws.

NOTE: Make sure the orientation marks are facing each other, and the gap between sensor and magnet does NOT exceed 0.25” when the device is in the closed position.

GET THE WATERPROOF CASE HERE:

WORKS WITH

NOTE: If you don't see your Z-Wave controller on the list above, please contact us before you purchase this product.

SPECIFICATIONS

• Z-Wave Region: EU/UK
• Z-Wave Chip: 700 series
• Power: 1 CR2032 battery (included)
• Magnet to sensor max gap: 0.25"
• Wireless Range: Up to 100 feet line of sight
• Operating Temperature: 32° – 104° F

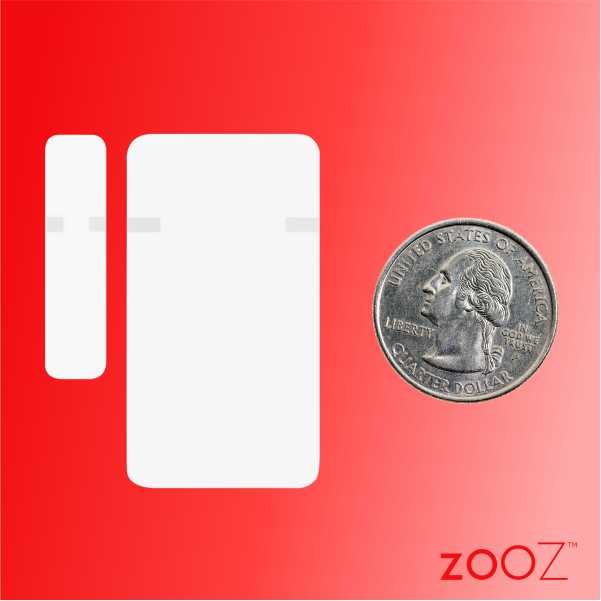

• Dimensions: 1.9” x 1” x 0.3” (magnet: 1.26" x 0.3" x 0.3")
• Installation: Indoor or outdoor use with waterproof case (sold separately)
