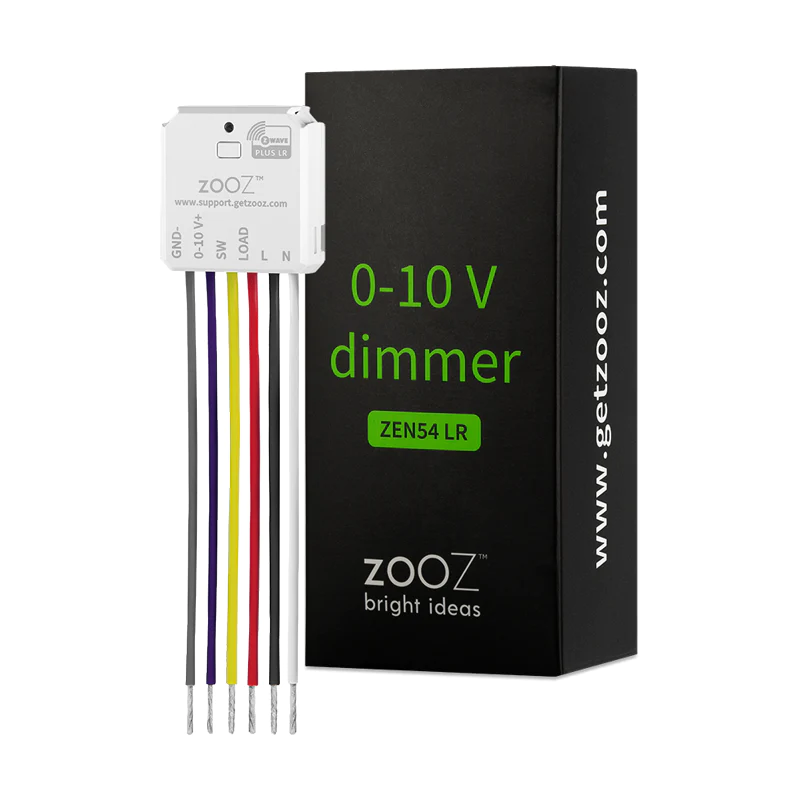

Z-Wave Dimmer 0-10V Zooz 700 Series S2 Z-Wave ZEN54 EU DIY Smart! Home Assistant HomeSeer

Name: Z-Wave Dimmer 0-10V Zooz 700 Series S2 Z-Wave ZEN54 EU DIY Smart! Home Assistant HomeSeer
Brand: Zooz
Price: 38.87 GBP
Availability: InStock

£38.87 GBP

Sale Sold out

Taxes included.

Quantity

PRODUCT HIGHLIGHTS

Beta Release This device may not be fully integrated with your hub at the time of purchase. You may need to update the firmware of the device after the purchase.

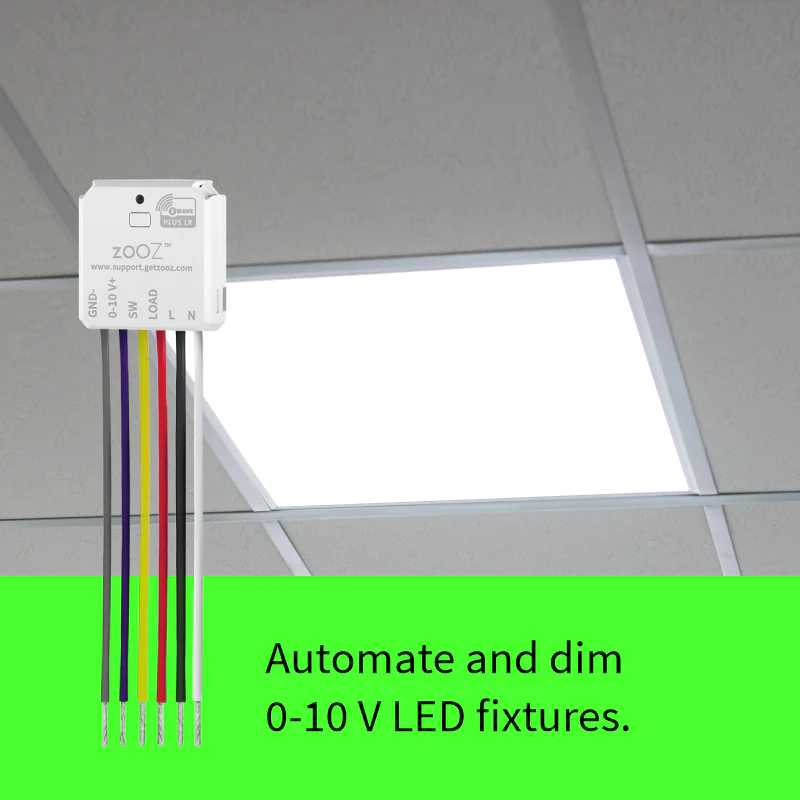

Dimming Z-Wave control for 0-10 V LED drivers only (do NOT user with 120 V LED bulbs)
Use with LED panels and fixtures with 0-10 V dimming drivers up to 4 A
700 series Z-Wave chip: more range, reliable coverage
Advanced settings to customize minimum or maximum brightness level and more*
Built-in signal repeater: keep your mesh network stable and your system fast
SmartStart and S2 authenticated security for a truly protected smart home
Installs behind the existing wall switch or at the fixture (check your wiring first and always follow the diagrams in the manual)
Pigtail wires included for quicker set-up
5-year extended warranty when registered and tech support forever

NOTE: Z-Wave gateway controller required - sold separately. *Your smart hub/controller needs to support advanced settings and central scene programming for you to take advantage of this feature.

Z-WAVE FREQUENCY

EU/UK: 868.42 MHz

INSTALLATION

Before installing, make sure your fixture uses a 0-10 V dimming driver which doesn't exceed 4 Amps. Check your wiring first to confirm that you have all the following wires present in your electrical box: both 0-10 V driver connections, power, neutral, and load connection to power the LED driver, as well as a connection to a wall switch.

If you are not comfortable identifying the wiring and following the instructions, please hire a licensed electrician.

Zooz 0-10 V Dimmer ZEN54 Wiring Diagram

Here are some helpful wiring tips:

Make sure the gang box you are about to install the switch has power with neutral wire available - you will not be able to get the ZEN54 Dimmer to work without a neutral wire.
Unlike regular mechanical switches, Z-Wave switches require all of the wires to be connected exactly as indicated - line and load wires can never be swapped as it sometimes happens to the most experienced electricians.

How to include the 0-10 V Dimmer to your smart home network?
1. Put your Z-Wave controller in inclusion/pairing mode (or scan the QR code on the ZEN54 if your hub supports SmartStart)
2. Click the Z-Wave button on the relay 3 times quickly to finalize the inclusion process
3. A new dimmer switch should appear on your hub's device list
